Facially Driven Smile Design and Direct Composite Veneers

Abstract

Facially driven smile design shifts the focus of esthetic dentistry from isolated tooth-centric rules to a comprehensive, patient-centered analysis that respects facial proportions, lip dynamics, and personality. When combined with modern restorative approaches such as the injection flow technique using injectable flowable composite, this philosophy enables minimally invasive, highly aesthetic composite veneers that integrate with the patient's smile dynamics. Recent advances in AI-supported smile design software further optimize planning, predictability, and communication by automating facial measurements, simulating outcomes, and linking digital plans to laboratory and clinical workflows. This article reviews the principles of facially driven smile design, describes the injection flow technique using injectable flowable composite for direct veneers, discusses materials and clinical workflow, and highlights how AI tools enhance treatment planning, patient acceptance, and reproducibility — while also noting limitations and practical considerations.

From Tooth-Centered to Facially Driven Design

Traditional smile design often emphasized isolated dental metrics — widths, lengths, midlines — sometimes producing results that looked technically “ideal” but felt incongruent with the patient's face. Facially driven smile design places the face, lips, and dynamic expressions at the center of planning. Key elements include:

• Facial proportions and symmetry (vertical thirds, horizontal thirds).
• Lip line at rest and during function (smile exposure).
• Tooth display, incisal plane orientation and cant relative to the interpupillary and facial midlines.
• Gingival architecture and smile arc compatibility with lower lip curvature.
• Personality, age-related expectations, and patient desires.

Applying these concepts to composite veneers preserves tooth structure and tailors esthetic outcomes to facial identity rather than to rigid tooth-only templates.





Overview of The Injection Flow Technique

The injection flow technique is a minimally invasive method for directly or indirectly fabricating composite veneers by injecting a flowable composite into a preformed template or matrix that defines the final tooth morphology. Key features:

1. Template-guided shaping: A silicone or 3D-printed matrix derived from the diagnostic wax-up or digital design contains the negative form of the intended veneers.
2. Injectable flowable composite: Low-viscosity, highly filled flowable composites are used; they adapt well, reduce voids, and can achieve high polishability depending on the material.
3. Controlled polymerization: Light-curing protocols and incremental polymerization strategies reduce stress and optimize mechanical properties.
4. Finish and characterization: After matrix removal, minimal finishing, staining, and glazing refine surface texture and color blending.

This technique merges the aesthetic control of a prosthetic wax-up with the conservative advantage of composite restorations.



Facially Driven Composite Veneers

1. Precision of Morphology: Facially driven design produces a diagnostic wax-up or digital mock that reflects facial proportions. Using a matrix transfers those exact morphologies to the composite, ensuring the final veneer complements facial features and smile dynamics.
2. Minimally Invasive: Because the shape and proportions are planned relative to the face, only conservative enamel recontouring or no-prep veneers are often needed, preserving tooth vitality.
3. Predictable Esthetics: The matrix reproduces planned incisal edges, embrasures, and surface textures, which are critical for a harmonious smile arc and lip support.
4. Rapid Iteration: Composite injection allows quick intraoral trials and on-the-fly adjustments, enabling patient feedback and immediate refinement of the facially driven plan.



Injectable Flowable Composite

Not all flowables are equal. For injection flow veneers, ideal material properties include:

• High filler loading for improved mechanical strength and polishability.
• Controlled viscosity — low enough to inject and flow into the matrix, but viscous enough to resist excessive run-off.
• Shade stability and availability of opaque and translucent shades or layering kits for characterization.
• Clinical handling characteristics — thixotropy, working time, compatibility with adhesives and bonding systems.
• Manufacturer guidance for bulk thickness and cure depth to avoid under-cured regions.

Clinicians should select clinically validated products and follow manufacturer’s curing protocols and recommendations for maximum incremental thickness.



Clinical Workflow: From Face to Finished Veneer

1. Comprehensive Facial Analysis

• Photograph the patient at rest and full smile, capture video if possible to evaluate dynamics.
• Record facial proportions, midline, interpupillary line, lip mobility, and gingival exposure.

2. Digital or Analog Smile Design

• Create a diagnostic wax-up or digital design guided by facial analysis. This is the blueprint that ensures facial harmony.
• If using AI-supported software (see below), import photos/3D scans to generate automated suggestions and refined measurements.

3. Mock-up and Patient Approval

• Produce an intraoral mockup (direct bis-acrylic or provisional composite via matrix) to allow the patient to visualize and approve shape/volume in the context of the face.

4. Matrix Fabrication

• From the approved mockup or digital design, fabricate a silicone index or 3D-printed matrix that precisely reproduces the planned morphology.

5. Tooth Preparation and Bonding

• Minimal or no-prep approach when appropriate; otherwise, confined enamel preparation.
• Apply adhesive protocol: selective enamel etch or total-etch per bonding system, rinse/dry, apply adhesive carefully.

6. Injection Phase

• Seat matrix and secure with small wedges or spot curing to stabilize.
• Inject flowable composite into matrix from palatal/incisal access to avoid air entrapment.
• Light-cure through the matrix if using a transparent matrix, or remove excess and cure sequentially per protocol.

7. Finishing and Characterization

• Remove matrix, check margins and contacts, refine anatomy using fine burs and polishing systems.
• Apply stains/glazes or surface sealants if needed to match translucency and texture.

8. Follow-up

• Polishing maintenance, hygiene reinforcement, and periodic recalls to monitor wear, margins, and color stability.

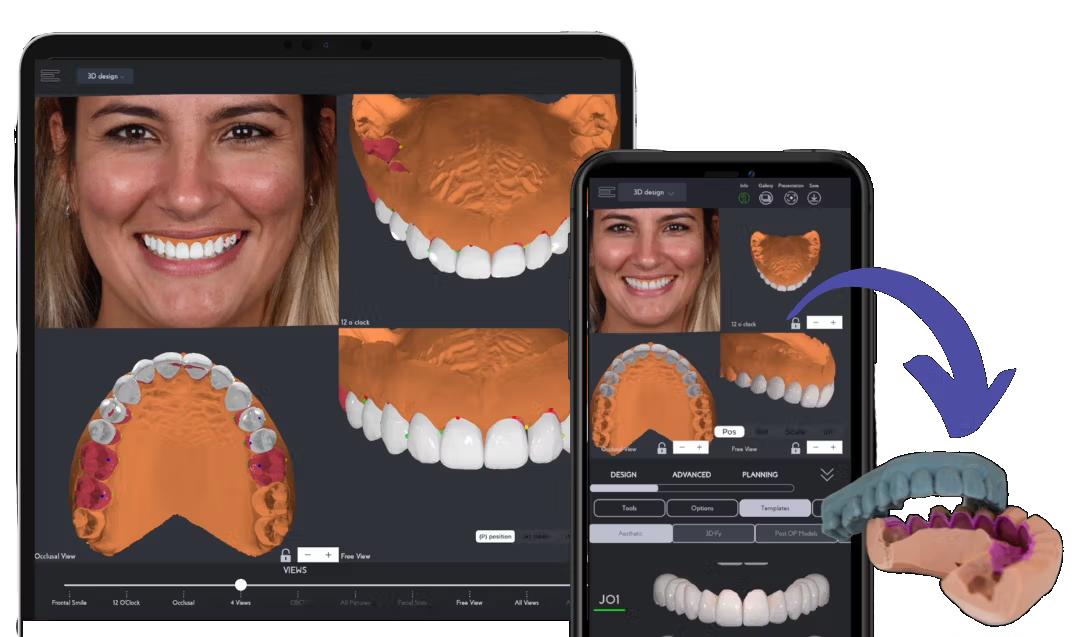

AI-Supported Smile Design Software

AI is transforming smile design in multiple practical ways:

1. Automated Facial Measurements

• AI algorithms detect facial landmarks (pupil centers, commissures, midline, lip contours) and compute proportions, cant, and symmetry quickly and accurately—reducing human measurement error.

2. Predictive Aesthetics and Style Matching

• Based on a database of faces and outcomes, AI can suggest tooth forms and proportions that are likely to harmonize with the patient’s facial type, age, and esthetic goals.

3. Fast Mockups and Communication

• AI-driven simulations produce photorealistic before/after images rapidly for patient consent and expectation management. These can be used to create digital files for 3D printing matrices or milling provisionals.

4. Integration with CAD/CAM Workflows

• Digital plans exportable as STL files allow the lab or in-office 3D printers to create precise matrices or models for the injection technique—closing the loop between planning and execution.

5. Outcome Prediction and Risk Flags

• Some platforms offer predictive analytics: assessing gingival display during smiling, occlusal risk, or the need for adjunctive orthodontic/plastic interventions to achieve the planned outcome.

6. Personalized Design Libraries

• AI can help build a library of patient-specific templates that evolve with clinician preferences and regional esthetic trends.

Advantages of Injection Flow Composite Veneers

• Faster, more accurate matrix production from the digital plan.
• More predictable shade and translucency planning when integrating AI estimations with material translucency data.
• Improved patient acceptance because they can “see” the facially integrated outcome before any irreversible steps.



Case Selection and Contraindications

Ideal candidates:

• Patients seeking conservative aesthetic improvements (shape, minor spacing, discoloration).
• Stable occlusion or cases where occlusal adjustments are predictable.
• Good periodontal health and adequate enamel for bonding.

Contraindications:

• Heavy bruxers or patients with parafunctional habits unless occlusal protection is planned.
• Cases requiring major morphological changes needing orthodontics, crown lengthening, or comprehensive prosthodontic rehabilitation (these may still be staged with mockups but may not be ideal for solely composite injection veneers).
• Poor oral hygiene or uncontrolled periodontal disease.



Advantages and Limitations

Advantages

• Minimally invasive with enamel preservation.
• High aesthetic control when coupled with facially driven design.
• Time-efficient: single-visit or short sequences possible.
• Repairability: composites are easily repaired chairside.
• Cost-effective compared to porcelain veneers.

Limitations

• Wear and color stability: composites may stain or abrade over time more than ceramics; maintenance required.
• Material limitations: bulk thickness and mechanical properties of flowables are more limited than particulate-filled paste composites or ceramics—careful layering and curing are essential.
• Operator skill: while the matrix simplifies morphology, finishing and subtle characterization remain technique sensitive.
• Long-term predictability: less long-term evidence compared to porcelain veneers — informed consent is crucial.







Conclusion

Facially driven smile design refocuses esthetic dentistry on harmony with the face and dynamic expressions. When combined with the injection flow technique using injectable flowable composites, it offers a conservative, rapid, and highly customizable approach to composite veneers. AI-supported smile design software enhances this workflow by automating measurements, improving predictability, and creating seamless digital-to-physical transfer for matrices and mockups. Together, these advances let clinicians deliver patient-centered esthetic outcomes efficiently — provided they select suitable cases, adhere to materials science principles, and maintain realistic expectations about longevity and maintenance.
