Light Curing Composite Resin: The Science Egyptian Dentists Need to Ma – MedSTA

Introduction

Light curing composite resin is one of the most performed procedures in modern restorative dentistry, and one of the most underestimated. Every direct composite restoration placed in Egyptian dental clinics depends on a precisely controlled photopolymerization reaction. Yet the quality of that cure is influenced by variables many clinicians overlook: the choice of curing unit technology, light intensity, tip-to-surface distance, exposure duration, composite shade, and filler loading.

For dentists practicing in Egypt — whether in private clinics in Cairo and Giza, academic hospitals affiliated with Cairo University or Ain Shams, or community health centers across the governorates — understanding the full science behind light activation is not optional. It is the difference between a restoration that lasts a decade and one that fails within two years from microleakage, secondary caries, or bulk fracture.

This article unpacks the complete clinical and scientific framework for optimizing light-cured composite polymerization. Drawing on peer-reviewed literature including Watts (2023), Price et al. (2014), and Ribeiro et al. (2024), we cover curing unit selection, technique optimization, degree of conversion benchmarks, and safety protocols — all contextualized for Egyptian clinical practice.

Key Clinical Takeaway

Polywave LED curing units are the current gold standard for light curing composite resin in Egypt because they activate both camphorquinone and alternative photo-initiators (e.g., Lucirin TPO). Position the tip ≤2 mm from the restoration surface, deliver adequate radiant exposure per increment (2 mm for conventional composites), match exposure time to shade and material type, and always use eye protection. Target a degree of conversion ≥60–70%. Regular irradiance testing is non-negotiable for predictable clinical outcomes.

Introduction
Light Curing Technologies: A Comparative Overview
Matching the Curing Unit to the Composite Material
Clinical Technique: Optimizing the Cure
Degree of Conversion: The True Benchmark
Thermal Safety and Pulpal Protection
Curing Unit Maintenance Protocols
Eye Protection Protocols
Photo-Initiator Reference Guide
Practical Checklist for Egyptian Clinics
FAQ
Conclusion
References

1. Light Curing Technologies: A Comparative Overview

The evolution of light-curing units (LCUs) reflects four decades of materials science and photonic engineering converging on a single clinical objective: delivering sufficient photon energy to drive composite polymerization to a clinically acceptable depth of cure with minimal thermal side effects.

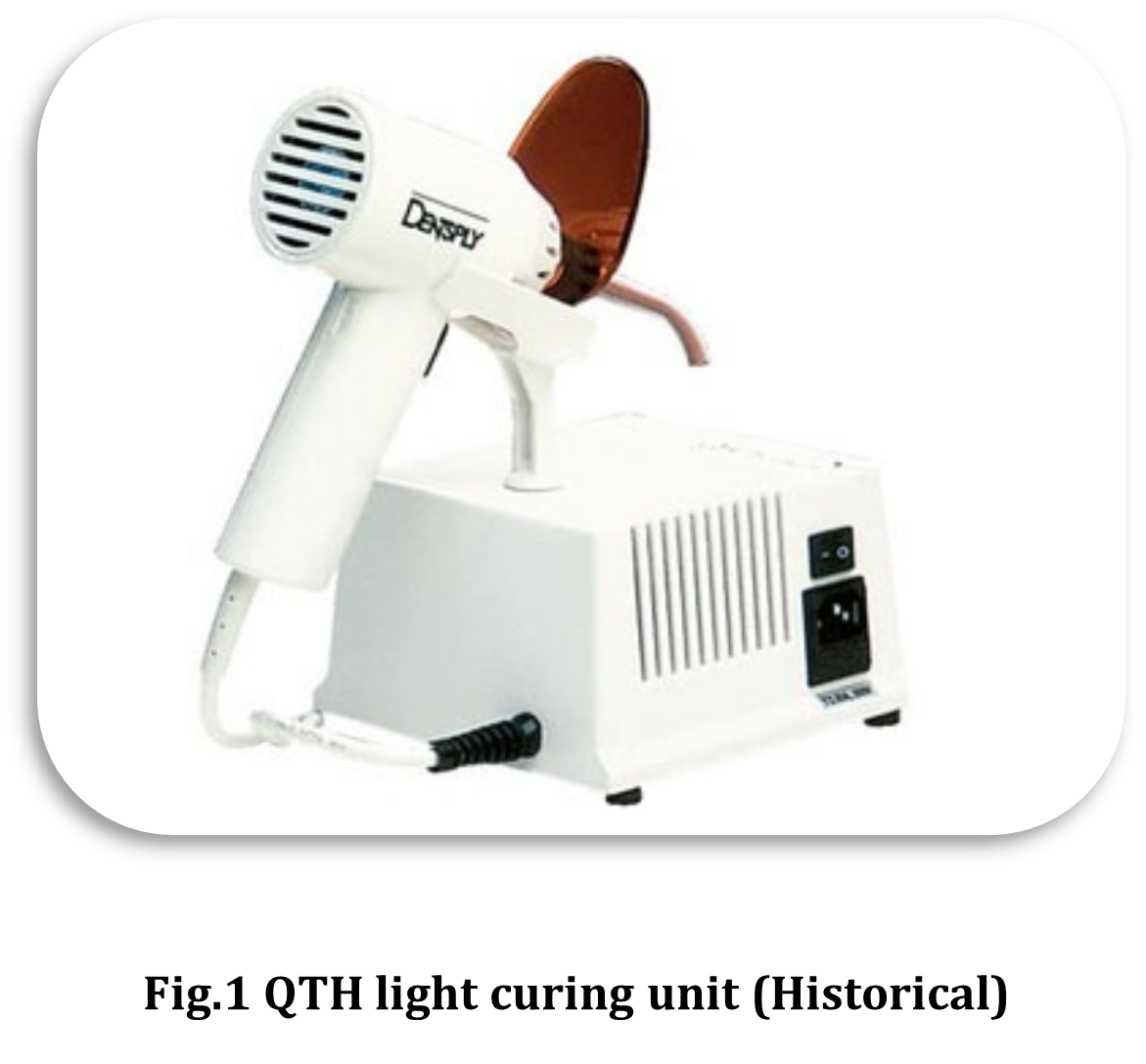

1.1 Quartz–Tungsten–Halogen (QTH) Units

QTH units were the dominant curing technology from the 1970s through the early 2000s. They produce a broad-spectrum white light (380–500 nm) filtered to isolate the blue activation range. However, their clinical limitations are significant: low energy efficiency, short bulb lifespan (40–80 hours), progressive output degradation, and prolonged curing times. For modern Egyptian clinics upgrading their equipment, QTH units represent a legacy technology with limited clinical justification.

1.2 Single-Chip LED Curing Units

Single-chip LED units emit a narrow blue-light bandwidth centered around 460–480 nm — precisely targeting the absorption peak of camphorquinone (CQ), the most widely used photo-initiator in conventional composite resins. Clinical advantages over QTH include superior energy efficiency, minimal heat generation, a lifespan exceeding 10,000 hours, and no bulb replacement requirement.

Single-chip LED units perform reliably with CQ-containing composites from Ivoclar, GC, 3M, and Dentsply. However, their narrow spectral range (FWHM of 20–30 nm) means they cannot activate alternative photo-initiators such as Lucirin TPO, which absorbs in the violet range (~380–420 nm).

1.3 Polywave (Multi-Chip) LED Curing Units — Gold Standard

Polywave LED units integrate multiple LED chips emitting both blue (460–480 nm) and violet (380–420 nm) wavelengths simultaneously, activating all commercially relevant photo-initiator systems including camphorquinone, Lucirin TPO, PPD, and Ivocerin (Ivoclar's proprietary germanium-based photo-initiator in Tetric PowerFill/PowerFlow lines).

Polywave LCUs deliver a higher degree of conversion, faster curing rates, and superior depth of cure — particularly for bulk-fill and premium composite materials. Polywave LED curing units are currently the gold standard for light curing composite resin, combining spectral versatility, energy efficiency, long lifespan, and predictable polymerization across all contemporary composites.

Shop professional restorative dental materials and curing units in Egypt at MedSTA.

1.4 Plasma Arc Curing (PAC) Units

Plasma arc units operate at extremely high intensities (often exceeding 1,000 mW/cm²), enabling polymerization within seconds. Despite this speed advantage, PAC units have not achieved widespread clinical adoption due to their high cost, substantial heat generation, bulky design, and reduced compatibility with certain composite systems. Silorane-based composites have documented compatibility issues with PAC curing.

2. Matching the Curing Unit to the Composite Material

2.1 Conventional Incremental Composites (2 mm Layers)

The foundational rule of conventional composite placement — increments not exceeding 2 mm — exists because light attenuation increases with filler loading and pigmentation. Standard single-chip LED units at 800–1200 mW/cm² provide effective polymerization for CQ-based conventional composites at this increment thickness with minimum exposure times of 20 seconds.

2.2 Bulk-Fill Composites

Bulk-fill composites allow placement in increments of 4–5 mm without the layered technique. Many premium bulk-fill materials rely on non-CQ photo-initiators, making polywave LED curing units critically important. Inadequate wavelength coverage is the most common cause of bulk-fill composite under-curing in Egyptian clinics using older single-chip units.

Browse the complete range of bulk-fill composite materials available in Egypt at MedSTA.

2.3 Flowable Composites

Flowable composites have a lower filler volume fraction (typically 45–65 vol%), which reduces light scattering and increases depth of cure. Most LED curing units provide adequate curing of flowable composites in standard shades within standard exposure times.

2.4 Packable (Condensable) Composites

Packable composites contain a higher filler load and larger filler particles, significantly increasing light scattering. This necessitates longer exposure times, strict adherence to 2 mm increment technique, and benefits from the higher photon output of polywave LED units.

2.5 Dark-Shade and Opaque Composites

Chromatic pigments in dark-shade composites (A3.5, B4, opaque masking shades) absorb photons before they can drive polymerization reactions. Clinicians should reduce increment thickness to 1.0–1.5 mm for dark shades and extend exposure time by 50–100% relative to the manufacturer's baseline recommendation.

2.6 Silorane-Based Composites

Silorane-based composites use a ring-opening polymerization mechanism to reduce volumetric shrinkage. Their photo-initiator system responds optimally to conventional LED or QTH units. PAC curing is contraindicated because the extremely rapid energy delivery disrupts silorane polymerization kinetics, resulting in inferior bond strength despite apparent surface cure.

3. Clinical Technique: Optimizing the Cure

3.1 Tip-to-Surface Distance

Light intensity follows the inverse square law positioning the curing tip 4 mm from the restoration surface instead of 2 mm reduces delivered irradiance by approximately 75%. The clinical recommendation: position the curing tip within 1–2 mm of the restoration surface, never exceeding 3 mm. For posterior restorations with limited access (particularly mandibular second molars), angled light guides or right-angle adaptors are strongly advised.

3.2 Radiant Exposure and Exposure Duration

Radiant exposure (RE) — measured in J/cm² — is the product of irradiance (mW/cm²) multiplied by exposure time (seconds). A minimum RE of 16–24 J/cm² is generally cited for standard composite shades; dark shades, opaque materials, and bulk-fill composites often require 20–40 J/cm² or more.

3.3 Beam Uniformity and Coverage

For restorations extending beyond the diameter of the curing tip — common in class II and class IV situations — overlapping exposures are required. The tip must remain stationary during each exposure cycle. For large restorations, a 50% overlap between sequential exposures is a reliable clinical rule.

3.4 Wavelength-to-Photo-Initiator Matching

Camphorquinone: peak absorption ~470 nm (blue LEDs). Lucirin TPO: peak absorption ~380–420 nm (violet LEDs). Ivocerin: absorption in the violet-blue transition range. Matching occurs automatically with polywave LED units. Always verify the composite's photo-initiator system before assuming standard blue-light curing is sufficient.

4. Degree of Conversion: The True Benchmark

The degree of conversion (DC) represents the percentage of carbon-carbon double bonds (C=C) in the methacrylate monomers that are converted to covalent cross-links during photopolymerization. Clinically achievable DC values range from 55% to 75%, with LED-cured composites consistently achieving higher DC than QTH-cured counterparts.

A DC below ~55% is associated with: release of residual monomers with cytotoxic potential (bis-GMA, TEGDMA, HEMA); reduced hardness, flexural strength, and fracture toughness; increased water sorption and solubility; compromised marginal integrity; and accelerated surface wear and discoloration.

5. Thermal Safety and Pulpal Protection

The critical threshold for irreversible pulpal damage is a sustained temperature increase of ≥5.5°C above baseline intrapulpal temperature. High-output LED units — particularly those exceeding 1,500 mW/cm² — can produce temperature rises at the pulpal floor exceeding this threshold within standard 20-second exposures in teeth with thin remaining dentin (Gomes et al., 2013).

Mitigation strategies include using intermittent or soft-start curing modes, applying calcium hydroxide or glass ionomer bases under deep composites before curing, and maintaining air cooling during extended curing sequences. A 3-second off-label curing exposure protocol studied by Ribeiro et al. (2024) showed compromised depth of cure across eight composite materials — confirming that extremely shortened protocols sacrifice polymerization quality for time savings.

6. Curing Unit Maintenance Protocols for Egyptian Clinics

6.1 Periodic Irradiance Testing (Radiometry)

Every clinic should own or have access to a calibrated dental radiometer. Monthly irradiance testing at the center and periphery of the light guide tip documents output consistency. Units showing ≥20% decline from baseline should be serviced before continued clinical use.

6.2 Light Guide Maintenance

The curing tip is the most vulnerable component. Contamination with composite resin or bonding agent reduces output by 10–50%. Light guides should be cleaned after each patient. Protective barrier sleeves prevent contamination and eliminate the need for chemical disinfection of the light guide itself. Find curing unit accessories and protective barrier sleeves in Egypt at MedSTA.

7. Eye Protection: Non-Negotiable Clinical Safety

Blue light at 400–500 nm does not trigger the aversion reflex that protects us from white bright-light sources, making the curing light uniquely dangerous. Accumulated retinal exposure can produce cumulative photochemical retinal injury (blue-light hazard, BLH) affecting the macula.

All clinical personnel — the operating dentist, chairside assistant, and the patient — must use appropriate blue-light filtering eye protection throughout every curing procedure. Manufacturer-supplied orange-tinted blocking filters or certified protective eyewear provide adequate protection.

8. Photo-Initiator Reference: Quick Guide for Clinical Decisions

Photo-Initiator	Type	Absorption Peak	Compatible Curing Unit
Camphorquinone (CQ)	Primary	460–480 nm (Blue)	Single-chip or polywave LED, QTH
Lucirin TPO	Alternative	380–420 nm (Violet)	Polywave LED ONLY
Ivocerin (Ivoclar)	Alternative	380–460 nm (Violet-Blue)	Polywave LED ONLY
PPD	Alternative	420–460 nm	Polywave LED preferred
BAPO	Alternative	380–420 nm (Violet)	Polywave LED ONLY
Silorane photo-system	Ring-opening	~470 nm (Blue)	LED or QTH — NO PAC

9. Practical Checklist for Egyptian Dental Clinics

Before Every Restoration

Identify the composite brand and confirm the photo-initiator system from the IFU
Select polywave LED if using bulk-fill or any non-CQ material
Check irradiance output with radiometer (monthly minimum)
Apply protective barrier sleeve to curing tip
Distribute eye protection to patient and all team members

During Polymerization

Position curing tip within 1–2 mm of restoration surface, parallel to the surface
Maintain strict incremental thickness: 2 mm for conventional; 4–5 mm for qualified bulk-fills only
For dark shades: reduce increment to 1–1.5 mm, increase exposure time by ≥50%
Keep tip stationary throughout curing cycle
For restorations wider than the tip: 50% overlapping sequential exposures

After achieving complete polymerization, explore finishing and polishing instruments and materials for composite restorations at MedSTA.

10. FAQ — Light Curing Composite Resin in Egypt

Q1: What is the best curing light for composite resin in Egypt?

Polywave LED curing units are the current gold standard. They activate all photo-initiator systems used in contemporary composites — including Lucirin TPO and Ivocerin — making them compatible with conventional, bulk-fill, flowable, and packable composites. Single-chip LED units remain effective for CQ-based conventional composites but are becoming limiting as advanced composite formulations become more prevalent in the Egyptian dental market.

Q2: How long should I cure each layer of composite?

Minimum 20 seconds at ≥600 mW/cm² for A2–A3 shades at 2 mm increments. Increase to 30–40 seconds for dark shades (A3.5–B4) or opaque materials. Always consult the material IFU. Some bulk-fill materials specify shorter times with ultra-high-intensity units (≥3,000 mW/cm²), but only after confirming the RE threshold is met.

Q3: Why is my composite restoration discoloring after 6–12 months?

Premature discoloration frequently signals under-polymerization — specifically, insufficient degree of conversion leading to elevated monomer content, increased water sorption, and plasticization of the resin matrix. Re-evaluate your curing protocol: check irradiance output, confirm tip distance, verify photo-initiator compatibility, and review increment thickness.

Q4: Can I cure a 4 mm bulk-fill composite with a standard single-chip LED?

Not reliably. Most bulk-fill composites — including Tetric PowerFill, x-tra fil, and SDR Plus — incorporate non-CQ photo-initiators requiring violet wavelengths (380–420 nm). A single-chip blue LED unit at 460–480 nm cannot activate Lucirin TPO or Ivocerin. The result is a well-cured outer surface masking a poorly converted deeper layer. A polywave LED unit is required for predictable bulk-fill polymerization.

Q5: How often should I calibrate my curing unit in Egypt?

Monthly radiometry is the professional standard. Given that Egyptian clinical environments include high ambient temperature and humidity variation between seasons, along with high unit utilization across extended patient loads, more frequent checks (every 2 weeks) are prudent for busy clinics.

Q6: What eye protection does my patient need during light curing?

The patient requires orange-tinted glasses or a blue-light shield filter specifically blocking blue light in the 400–500 nm range. Standard clear protective eyewear is insufficient. Children are particularly vulnerable due to clearer ocular media allowing greater retinal penetration.

Q7: Does the Woodpecker LED B curing unit support bulk-fill composites?

Woodpecker LED units vary by model. The Woodpecker LED D and LED E series are polywave devices capable of activating both CQ and alternative photo-initiators, compatible with bulk-fill composites. The LED B is a single-chip device and should not be used as the primary unit for bulk-fill composites containing Lucirin TPO or Ivocerin.

Conclusion

Light curing composite resin is the single most executed photochemical procedure in contemporary restorative dentistry — and it remains systematically underoptimized in Egyptian clinical practice. The shift to polywave LED curing units as the clinical default, combined with systematic radiometry, strict attention to tip distance and exposure duration, proper eye protection for all personnel, and material-specific protocol customization, represents the complete framework for predictable composite polymerization.

Egyptian dentists and students investing in this knowledge — and in the right equipment — position themselves to deliver restorative outcomes that match international benchmarks while serving patients across Cairo, Giza, Alexandria, and every governorate in Egypt.

References

Watts DC. Light-curing dental resin-based composites: How it works and how you can make it work. Frontiers in Dental Medicine. 2023;4:1108316.
Price RB, Shortall AC, Palin WM. Contemporary Issues in Light Curing. Operative Dentistry. 2014;39(1):4-14.
Nomoto R, McCabe JF, Hirano S. Comparison of halogen, plasma and LED curing units. Operative Dentistry. 2004;29(3):287-294.
Malhotra N, Mala K. Light-curing considerations for resin-based composite materials: a review. Part II. Compend Contin Educ Dent. 2010;31(8):584-591.
Demarco FF, Corrêa MB, Cenci MS, Moraes RR, Opdam NJM. Longevity of posterior composite restorations: not only a matter of materials. Dent Mater. 2012;28(1):87-101.
Gomes M, et al. Temperature increase at the light guide tip of 15 contemporary LED units. Oper Dent. 2013;38(3):324-333.
Ribeiro M, Maucoski C, Price RB, Soares CJ. Effect of a 3-second off-label exposure on the depth of cure of eight resin-based composites. Oper Dent. 2024;49(4):421-431.
