Clinical Review: Management and Bypassing of Root Canal Ledges

A root canal ledge is among the most disruptive procedural complications in clinical endodontics, not because it is rare, but because it interrupts the fundamental objective of the entire procedure: gaining full working length. When a ledge forms, the pathway to the apex becomes blocked by an artificial step gouged into the canal wall, effectively sealing off the apical portion of the root from cleaning, shaping, and obturation. Left unaddressed, a root canal ledge directly compromises the long-term prognosis of the treated tooth.

For Egyptian dentists managing high patient volumes across both private clinics and university teaching hospitals, the ability to detect, prevent, and actively bypass root canal ledges is a core clinical competency. The anatomical complexity of posterior teeth — combined with the widespread use of stainless steel instruments in high-volume clinical settings, makes ledge formation a genuine daily risk. Yet despite its frequency, many practitioners lack a structured, evidence-based protocol for systematic ledge management.

This article provides a complete, clinically grounded reference for understanding the root canal ledge: its anatomical basis, the three primary categories of causes, the critical detection indicators every clinician must recognize chairside, and the stepwise bypass protocol that gives the highest probability of regaining working length. Advanced modification techniques, instrument selection rationale, and the strict prohibitions that can make or break a bypass attempt are all covered in detail.

Whether you are a final-year dental student in Cairo, a general practitioner in Alexandria, or a specialist seeking to sharpen your procedural protocol, this guide is structured to translate directly into clinical action.

Key Clinical Points

• A root canal ledge is an artificial irregularity on the canal wall that blocks instruments from reaching the apex.
• 100% of ledges form in curved canals, always on the outer wall of the curve.
• The three main causes are: instrumentation errors, preparation deficiencies, and clinical oversight.
• A preoperative radiograph is the single most important prevention tool.
• The 3Cs Bypass Protocol, Copious Irrigation, Coronal Enlargement, Canal Negotiation, is the gold-standard management approach.
• Never use EDTA during the bypass attempt. It reduces tactile feedback and softens dentin.
• Never use rotational or reciprocating motion until the ledge is fully bypassed.
• The goal is a straight K-file passing freely through the canal to the true apex.

1. What Is a Root Canal Ledge? Anatomy and the Golden Rule

Defining the Ledge

In clinical endodontics, a root canal ledge is formally defined as an artificial irregularity created on the surface of the root canal wall that prevents instruments from penetrating further toward the apex. It is not a biological structure and does not exist before instrumentation begins. Every ledge is, by definition, an iatrogenic complication one created by the clinician or by incorrect technique.

The distinction between a ledge and other apical blockages (such as a calcium bridge, a dentinal plug, or a separated instrument) is clinically important. A ledge is a physical step carved into the dentin on one specific wall of the canal. It creates a "false floor" at a point short of the true working length. When an instrument enters the canal, it follows the path of least resistance and seats into this artificial concavity rather than continuing along the natural canal trajectory. This is the mechanism that makes ledges so self-reinforcing: the more force applied, the deeper the instrument engages the ledge rather than finding the true path.

The Anatomical Golden Rule

One anatomical principle governs every aspect of ledge formation, detection, and bypass:

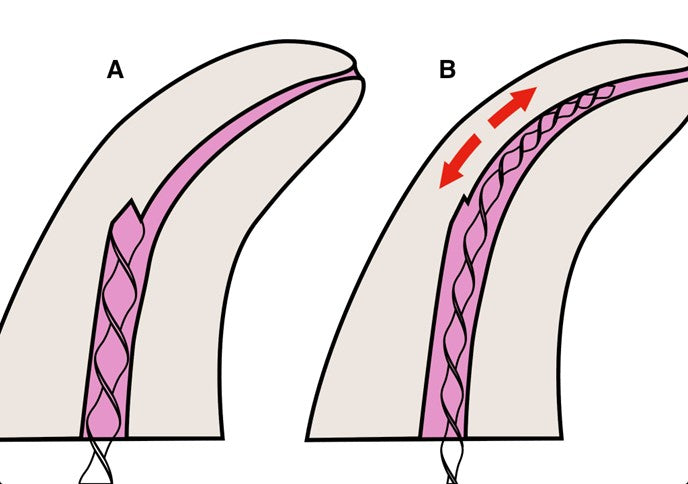

A root canal ledge is always found on the outer wall of a curved canal.

This is not a statistical tendency, it is an anatomical certainty. Statistical data confirms that 100% of ledges form in curved canals, and the governing physics make this absolute. When a straight or inadequately pre-curved stainless steel file is introduced into a curved canal, the internal restorative forces within the metal cause the file tip to press outward against the outer wall of the curvature rather than following the natural arc of the canal. The rigid file tip acts as a drill, repeatedly scoring the outer wall until it creates a step deep enough to trap subsequent instruments.

The clinical implication is direct: because the ledge is always on the outer wall, every bypass attempt must direct the file tip toward the inner wall of the curvature. This single anatomical understanding converts what seems like blind probing into a purposeful, directional procedure.

Why This Matters for Egyptian Clinical Practice

Many cases presenting with incomplete root canal treatment in Egyptian clinical practice carry a history of ledge formation, often undiagnosed, sometimes misinterpreted radiographically as a short fill or a calcified canal. Understanding the precise anatomical location of the ledge gives the clinician a rational starting point for renegotiation rather than a vague attempt to "find the canal."

2. Etiology: The Three Categories of Ledge Formation

The causes of root canal ledge formation are best understood in three distinct categories: instrumentation errors, preparation deficiencies, and clinical or procedural oversight. Each category represents a different point of failure in the overall endodontic workflow.

Category 1: Instrumentation Errors

These are the most direct causes errors made in the act of filing itself.

Aggressive Apical Force: Applying excessive downward pressure with a stiff file into a curved canal is the single most common cause of ledge formation. The file tip, under force, does not follow the canal curvature; it is driven into the outer wall. In busy clinical environments, time pressure can encourage practitioners to force progress rather than allow the file to negotiate freely.

Large-Diameter Straight Files in Curved Canals: Attempting to progress with larger ISO sizes (typically #20 and above in stainless steel) without adequate flexibility adjustment causes the inherent rigidity of the metal to override the canal's natural path. The larger the file diameter, the more powerful the outward restorative force against the outer wall.

Skipping File Sizes: Failing to follow the sequential ISO size progression for example, jumping from a #15 directly to a #25 creates a mismatch between the canal diameter and the file taper. The oversized file cannot seat smoothly and instead gouges the wall at the point of contact, beginning the ledge formation process.

Category 2: Preparation Deficiencies

These are errors that occur before active apical shaping begins failures in setting up the canal for successful instrumentation.

Insufficient Coronal Preflare: The coronal third of the root canal must be widened before deeper shaping begins. Without adequate coronal preflare, the file is forced through a tighter coronal geometry, which amplifies the deflection angle as it enters the curve. The file tip arrives at the curvature already under mechanical strain, making ledge formation almost inevitable.

Inadequate Glide Path Preparation: The glide path is a manually created, smooth, and reproducible pathway from the canal orifice to the apex. It is the prerequisite for all rotary and reciprocating instrumentation. When the glide path is incomplete — either because it was not established or because the selected glide path instruments were insufficient for the canal anatomy every subsequent file enters a canal that has not been prepared to receive it.

Failure to Pre-curve Files: Inserting a straight instrument into a curved canal system without first pre-curving the apical few millimeters of the file is a fundamental technical error. Pre-curving does not straighten the canal; it creates a working geometry that matches the canal's natural arc, allowing the file tip to follow rather than resist the curvature.

Category 3: Clinical and Procedural Oversight

This category includes systemic errors in the clinical environment and decision-making.

Lack of Irrigation: Irrigation with sodium hypochlorite throughout instrumentation serves multiple functions: dissolving organic debris, lubricating the canal, and preventing dentinal debris from compacting apically. Working in a dry canal dramatically increases friction, creates debris blockages that resist file advancement, and raises the risk of the file tip deflecting into the canal wall under increased load.

Inadequate Access Cavity Preparation: An insufficient access cavity forces the file to enter the canal at an angle rather than along its long axis. This oblique entry point creates a continuous lateral force on the file shaft, which is transmitted directly to the tip and redirected into the outer wall.

Inadequate Knowledge of Canal Morphology: Proceeding without a thorough radiographic and anatomical understanding of the specific tooth and root being treated removes the clinician's ability to anticipate curvatures, bifurcations, or other anatomical challenges before encountering them at depth within the canal.

3. Prevention and Preoperative Diagnosis

The Preoperative Radiograph: The Most Valuable Diagnostic Tool

Prevention consistently outperforms management. The single most effective preventive measure is a high-quality, properly angled preoperative radiograph evaluated before any instrument enters the canal.

The preoperative radiograph allows the clinician to:

• Assess the degree and location of canal curvature
• Identify calcifications or abrupt angulations that require modified technique
• Determine the approximate working length for initial patency file sizing
• Plan the coronal preflare strategy based on visible canal width

A dilacerated root, a distal curvature visible on a mesio-eccentric view, or a sudden canal narrowing at mid-root level - all of these are warnings that demand modified technique before the first file is introduced.

Prevention Protocol: The Pre-Instrumentation Checklist

Before initiating instrumentation in any curved canal system, the clinician should confirm:

1. Access cavity optimized - straight-line access achieved with no wall interference
2. Coronal preflare completed - minimum Gates-Glidden or orifice opener preflare before working length determination
3. Glide path established - manual K-files #10 and #15 moved freely to working length before rotary introduction
4. Files pre-curved - apical 2–3mm of manual files bent to approximate the canal curvature
5. Irrigation loaded - sodium hypochlorite in the canal before any instrumentation begins
6. Sequential file sizing planned - no size skipping, no forcing

When these six conditions are satisfied, the probability of creating a root canal ledge drops significantly, regardless of canal curvature.

4. Clinical Detection: The Four-Point Chairside Checklist

Early detection of a root canal ledge is critical. The sooner a ledge is identified, the shallower it is, and the higher the probability of successful bypass. The following four indicators must be recognized immediately during treatment.

Indicator 1 - Sudden Loss of Working Length

The most immediate and reliable sign. The instrument, which previously reached the established working length freely, now stops short — sometimes by 1–2mm, sometimes by significantly more. There is no gradual resistance; the stop is sudden and repeatable.

This must be distinguished from dentinal debris compaction, which can sometimes be cleared by irrigation and recapitulation. If the working length cannot be re-established after copious irrigation and a small #08 patency file, a ledge must be assumed.

Indicator 2 - Tactile Sensation of a Hard Solid Wall

When a file engages a root canal ledge, the tactile sensation is characteristically "hard" and unyielding — distinctly different from the "leathery catch" of the apical constriction at the true terminus of the canal. The apical constriction has a slightly yielding, biologically textured quality; the ledge is solid dentin. This distinction is felt clearly through the finger grip on the file handle and is one of the most reliable chairside diagnostic signals.

Indicator 3 - Complete Loss of File Binding

In a patent canal approaching working length, the file should engage the canal walls with measurable friction. When a ledge is present, the file may feel completely free of resistance until it reaches the obstruction — then stops abruptly. This paradoxical looseness followed by a hard stop is a characteristic finding that should trigger immediate ledge suspicion.

Indicator 4 - Radiographic Deviation

A periapical radiograph with the file at the "apparent working length" will show the file tip deviated from the original canal lumen typically deflected outward toward the outer wall of the curvature. This radiographic confirmation is definitive, but the tactile indicators above should prompt diagnostic action before the radiograph is taken, not after.

5. The 3Cs Bypass Protocol: Step-by-Step

The established procedural framework for root canal ledge management is the 3Cs Protocol: Copious Irrigation, Coronal Enlargement, and Canal Negotiation. Each step is sequential and each builds the conditions necessary for the next.

Step 1 - Copious Irrigation

Before any bypass attempt begins, the canal must be flooded with irrigant, specifically sodium hypochlorite. The purpose is threefold: to dissolve organic debris that may be contributing to the obstruction, to lubricate the canal walls, and to soften any loose dentinal chips that are impacted at the ledge site.

The critical prohibition at this stage: do not use EDTA during the bypass attempt. EDTA acts as a chelating agent that removes the smear layer and softens the canal wall dentin. While EDTA is an invaluable tool in routine canal preparation, using it during a bypass attempt removes precisely the tactile feedback the clinician needs. A softened dentin wall cannot deliver the "hard solid" sensation that distinguishes the ledge from the true canal pathway. Additionally, EDTA can deepen an existing ledge by making the wall more susceptible to file penetration in the wrong direction.

Managing endodontic irrigants and medications correctly is not a secondary consideration in ledge management it is a primary determinant of bypass success.

Step 2 - Coronal Enlargement

Before the negotiation begins, the coronal third of the canal must be maximally flared. The objective is to reduce the deflection angle the angle between the straight shaft of the instrument entering the access cavity and the curved trajectory of the canal below. A more open coronal funnel means:

• Less lateral force transmitted to the file tip at depth
• Greater freedom of movement for the pre-curved apical portion of the file
• Better irrigation penetration to the level of the ledge
• Reduced friction along the length of the file shaft

This is not a step that should be rushed. Every additional increment of coronal flare increases the probability of bypass success in the next step.

Step 3 - Canal Negotiation

This is the active bypass step. With irrigation loaded and the coronal third enlarged, the clinician now selects the appropriate instrument and begins the negotiation sequence.

6. Instrument Selection and the File Bend Technique



Choosing the Right File

The primary instruments for root canal ledge bypass are small manual K-files in sizes #06 through #15, with the #08 and #10 K-files serving as the preferred initial tools. Their small diameter allows them to explore the wall adjacent to the ledge without engaging the obstruction itself. Their flexibility greater than larger ISO sizes allows them to respond to gentle directional manipulation.

The reasoning for starting small is mechanical. A larger file tip that encounters the ledge will immediately be directed into it with greater force due to its larger cross-sectional area. A #08 or #10 file tip has a sufficiently small diameter to probe the narrow space between the ledge and the true canal path without being captured by the obstruction.

The File Bend Technique

The most important preparation step before canal negotiation is creating a sharp curve in the apical 1–2mm of the K-file tip. This is done manually using the fingers or a dedicated bending instrument, creating a distinct angular deflection at the very tip of the file.

The purpose of this bend is directional control. Within the canal, the clinician cannot see where the file tip is pointing. The bend converts an otherwise random probing motion into a directional instrument that can be orientated precisely toward the inner wall of the curvature away from the ledge.

The Stopper Marking System

Tracking the orientation of the file tip at depth requires a visual reference at the coronal access level. A rubber stopper is placed on the file at the measured depth, and a mark is placed on the stopper precisely aligned with the direction of the bend in the tip.

When the file is seated to the level of the ledge, the stopper mark indicates the direction the pre-curved tip is pointing inside the canal. If the mark points outward (toward the ledge), the clinician rotates the file handle until the mark — and therefore the bent tip — points inward, toward the inner wall of the curvature. Only then does active negotiation begin.

7. Operational Motion and the Critical Bypass Rules

The Pecking Motion

With the file correctly oriented tip directed toward the inner wall the bypass motion is a controlled pecking motion combined with short vertical strokes. The file is advanced in small increments (fractions of a millimeter) while the clinician maintains active attention on the tactile sensation at the tip.

The clinician is probing for a "catch" a slight resistance that indicates the file tip has found the true canal pathway. This sensation is subtle and requires concentration. It is not the hard stop of the ledge; it is a gentle, progressive engagement that deepens with each small stroke.

The Non-Removal Rule - The Most Critical Step

Once the file gains length past the ledge, the single most important rule applies:

Once the file slips past the ledge and gains length, do not remove it.

Continue using short vertical strokes to enlarge and consolidate the bypass pathway. The channel immediately past the ledge is extremely narrow, barely larger than the file itself. If the file is removed at this point, the next instrument will almost certainly follow the path of least resistance back into the ledge rather than the narrow bypass pathway.

The file must remain in place and continue moving until the bypass pathway is wide enough that the file moves freely through it, both in and out, without engaging the ledge at all. Only at this point is it safe to transition to progressively larger sizes.

The Absolute Prohibition: No Rotational Motion

Never apply rotational or reciprocating motion during the bypass attempt.

This prohibition is absolute. Rotational or reciprocating motion including watch-winding causes the file to engage and deepen the ledge rather than probe past it. The mechanical logic is straightforward: rotational motion causes the file tip to cut in the direction it is engaged, not in the direction the clinician intends. A pre-curved file tip rotating against a ledge will enlarge the ledge, not bypass it.

8. Troubleshooting: When the Pre-Curved File Straightens

In some cases, the pre-curved file will straighten before reaching the depth of the ledge. This occurs when the canal geometry above the curvature exerts a straightening force on the file either because the coronal portion of the canal is narrow, or because the radius of the curvature is sharper than the pre-curve created in the file.

When this occurs, two corrective actions are available:

Corrective Action 1 - Shorten the Pre-Curved Length

Reducing the length of the pre-curved section (from 2mm to approximately 1mm) increases the rigidity of the tip relative to its surroundings. A shorter, sharper bend is more resistant to straightening by the canal walls and retains its directional orientation better at depth.

Corrective Action 2 - Increase Coronal Preflare

Further enlarging the coronal third reduces the constraint on the file as it descends toward the curvature. A more open coronal funnel gives the pre-curved portion of the file more freedom to maintain its geometry rather than having it straightened by wall pressure above the curve. This is the reason coronal preflare is emphasized throughout the bypass protocol, it is not a one-time step but an iterative adjustment that should be revisited whenever progression stalls.

9. Advanced Techniques: Staging Platforms and Ultrasonic Application

Staging Platforms Using Modified Gates-Glidden Drills

For particularly resistant ledges those that have been deepened by prior attempts or that involve a complex curvature a staging platform can be created to improve access for the bypass attempt.

A staging platform is created using a modified Gates-Glidden drill: the tip of the bur is ground off to expose the maximum diameter of the cutting head, converting it from a drill into a flat-ended platform creator. This modified instrument is used in the straight coronal section of the canal above the curvature to create a flat, stable base within the canal lumen.

The staging platform serves two functions. First, it provides enhanced direct vision into the coronal portion of the canal by creating a flat landing zone for the negotiation file. Second, the triangular cross-section of the modified Gates-Glidden tip creates a stable reference surface that prevents the bypass file from tilting or deviating as it is advanced into the curve below.

Ultrasonic Endodontic Application

Ultrasonic endodontic devices offer a viable adjunct for resistant ledges, particularly when the ledge has been confirmed radiographically and precise tip placement is possible. Two primary tip types are relevant:

Tip	Material	Primary Application
ET20	Stainless Steel	Removal of debris and smear layer; extraction of filling material, silver points, and separated instruments
ET20D	Diamond-coated	Lateral abrasion and wall brushing to modify the ledge topography; removal of very hard calcified material



The ET20D tip is particularly valuable for ledge modification because its diamond-coated surface allows controlled lateral abrasion of the ledge edge without aggressive apical penetration. Used under direct vision with a dental microscope or high-magnification loupes, it can reduce the height of the ledge and create a more gradual transition toward the true canal pathway.

10. Clinical Objective: Defining a Successful Bypass

The procedural endpoint of root canal ledge management is precisely defined:

A straight K-file must be able to pass freely through the canal to the true apex without engaging the ledge.

This criterion is specific and measurable. It is not sufficient for the file to reach working length with effort it must pass freely, with minimal resistance, confirming that the ledge has been effectively bypassed and that the pathway to the apex is smooth enough for standard instrumentation.

Once this criterion is met, the clinician can transition from specialized pre-curved negotiation files to rotary file systems or standard manual instrumentation for canal shaping. The ledge, at this stage, has been smoothed and incorporated into the canal geometry rather than remaining a discrete obstruction. The canal can then be cleaned and shaped to the full apical extent, restoring the conditions necessary for complete obturation.

FAQ: Root Canal Ledge - Egyptian Dentist Answers

Q1: What is a root canal ledge and how is it different from a blockage?

A root canal ledge is an artificial step carved into the outer wall of a curved canal by an instrument. A blockage (or apical plug) is debris — usually dentinal chips or necrotic tissue compacted into the canal lumen. The distinction is both tactile (a ledge feels like a hard solid wall; a blockage feels softer and can sometimes be cleared with irrigation) and radiographic (a ledge shows lateral file deviation; a blockage keeps the file centered in the canal lumen).

Q2: Can every root canal ledge be bypassed?

Not every ledge is bypassable, but the majority can be if detected early, approached with the correct protocol, and managed with appropriate instrumentation. Deep ledges — those created by repeated, aggressive instrumentation attempts — are more difficult to bypass and may require referral to an endodontic specialist or may ultimately require surgical management. Early detection is the most important predictor of bypass success.

Q3: Why is EDTA strictly prohibited during the bypass attempt?

EDTA reduces tactile feedback by lubricating the canal walls and softens the dentin by chelating calcium from the dentinal tubules. Both effects are counterproductive during bypass: the clinician needs to feel the difference between the ledge and the true canal path (tactile feedback), and the canal wall needs to be firm enough to resist further instrument penetration in the wrong direction. EDTA is appropriate before and after the bypass not during it.

Q4: How long should the bypass attempt take before considering other options?

There is no fixed time limit. A bypass attempt should be patient, methodical, and unhurried. If no progress is made after a thorough attempt with the correct protocol — including maximal coronal preflare, correct file bending, and oriented tip placement — the case should be documented radiographically and either rescheduled for a second attempt or referred to a specialist. Prolonged aggressive probing without progress only deepens the ledge.

Q5: Is it possible to prevent ledge formation in severely curved canals?

Yes, with meticulous technique. The key preventive measures for severely curved canals are: completing a thorough coronal preflare before working length determination, establishing a manual glide path to working length before any rotary instrumentation, using flexible NiTi files rather than stainless steel, maintaining copious irrigation throughout, and using short amplitude, light-pressure movements in the apical third. None of these measures individually eliminates the risk, but together they reduce it substantially.

Q6: What is "ledge in endodontics" as a topic in Egyptian dental education?

Ledge formation is a core topic in clinical endodontic curricula across Egyptian dental faculties at Cairo University, Ain Shams, Alexandria, and other institutions. It is typically taught in the context of procedural errors and canal preparation complications. However, the clinical bypass protocol particularly the 3Cs, the no-EDTA rule, and the non-removal principle is often undertreated in pre-clinical training, making this a critical continuing education area for practicing clinicians.

Q7: When should a patient with a suspected ledge be referred to a specialist?

Referral should be considered when: (1) the ledge was created by prior incomplete treatment rather than the current session; (2) the canal has a severe curvature (>25–30 degrees) combined with a deep ledge; (3) the bypass attempt has failed after a complete, properly executed protocol; or (4) there is radiographic evidence of perforation risk near the furcation or lateral root surface. Earlier referral consistently produces better outcomes than repeated failed bypass attempts.

Q8: Can a rotary file system be used to bypass a ledge?

No. Rotary and reciprocating files must never be used to attempt a ledge bypass. Their rotating or reciprocating motion will engage and enlarge the ledge rather than find the true canal pathway. The bypass must be completed entirely with pre-curved manual K-files using a non-rotating pecking motion. Only after the bypass is established and the pathway is sufficiently widened with manual files can rotary instrumentation be safely resumed.

12. Conclusion

The root canal ledge represents a preventable complication that demands both anatomical knowledge and disciplined technique. Every ledge begins with a predictable cause a stiff file forced into a curve, an incomplete glide path, insufficient coronal preflare and every bypass follows a logical, evidence-based sequence grounded in the same anatomy that created the problem in the first place.

The governing anatomical principle is the starting point for everything: the ledge is on the outer wall, so the bypass must seek the inner wall. From this single insight, the entire protocol flows naturally the directional pre-curve, the stopper orientation, the pecking motion, the non-removal rule, and the prohibition against rotational movement all serve to redirect the instrument away from the ledge and toward the true canal pathway.

For Egyptian dental practitioners managing diverse case complexity across different clinical settings, integrating this protocol into routine practice is both achievable and clinically impactful. The difference between a tooth that retains full working length and one that is left with an unresolved ledge often comes down not to equipment or material availability, but to technique, patience, and an understanding of the anatomy that governs every instrument in the canal.

Where technique alone is insufficient, adjunct tools properly equipped path files for glide path preparation, selected rotary systems for post-bypass shaping, and ultrasonic devices for advanced modification complete the clinical toolkit. Ledge management is not a rescue procedure reserved for specialists; it is a structured, teachable skill that belongs in every general practitioner's clinical repertoire.
