DTE implant motor

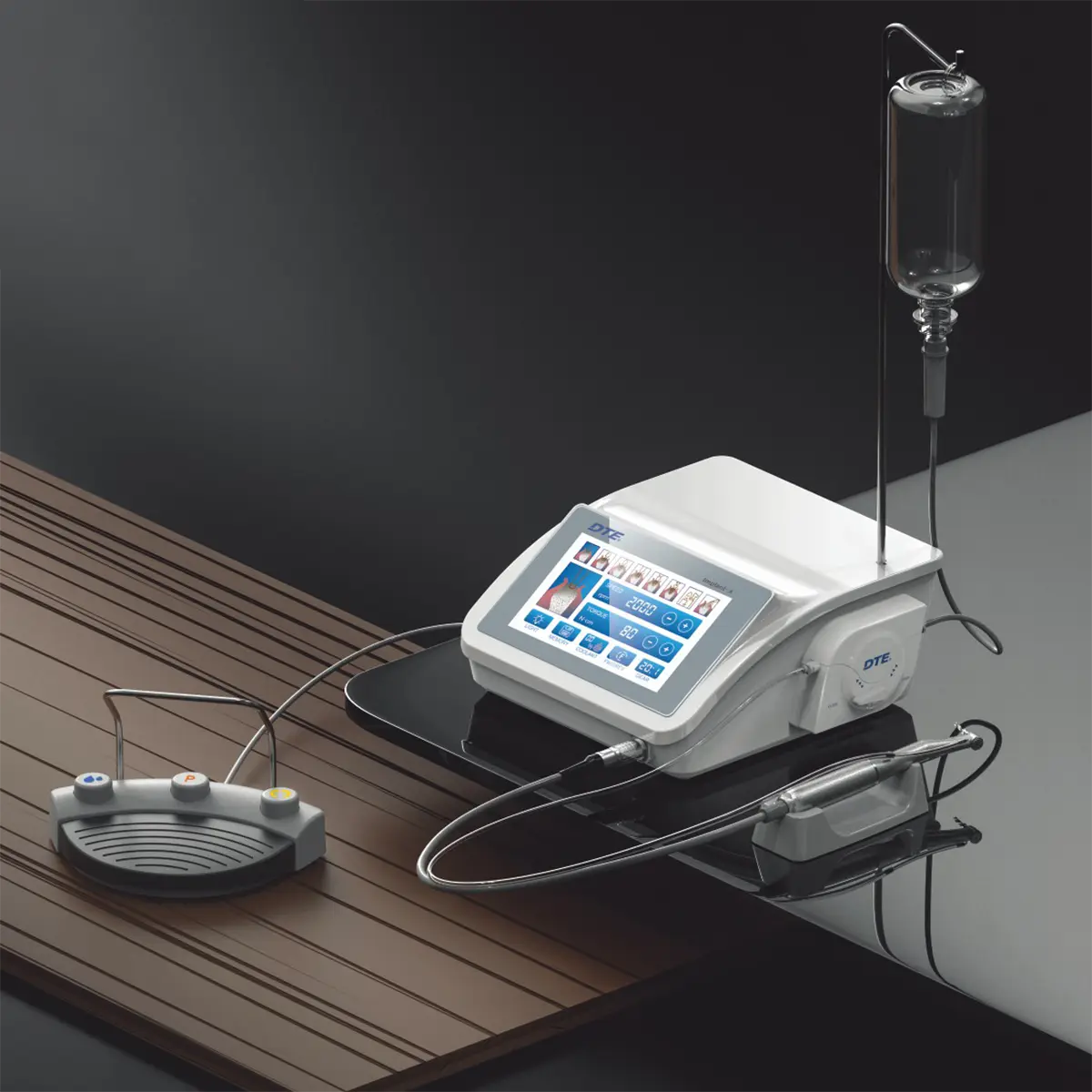

The DTE woodpecker implant X Motor with LED handpiece is a high-precision implantology system built for safety, comfort, and accuracy. Powered by a premium swiss motor with adjustable torque and speed, it enables precise implant placement. With LED illumination, internal and external irrigation, autoclavable components, and ergonomic foot control, it ensures reliable performance and patient-friendly outcomes.

• Complete set with LED handpiece
• External and internal irrigation
• Automatic overload protection function
• Motor and cable autoclavable
• Motor auto-calibration function
• Ergonomic multi-functional foot controller

Technical Specifications DTE Woodpecker Implant X Motor with LED Handpiece :

• Handpiece rotation speed range: 300–40000 rpm
• Torque range/gear: 20:1 5 Ncm to 80 Ncm
• Max pump output: 110ml/min
• Main unit dimensions: 276mm x 267mm x 10mm
• Motor weight: 140g
• Power supply: Ac220v 50/60Hz
• Tail cord length: 1.8m
• Foot pedal tail cord length: 2.8m
• Autoclavable temperature: Up to 135°C/275°F

Certification & Warranty:

• CE certified
• 24-month warranty on the main unit

Packaging includes the following:

•  1 x Control unit
•  1 x Irrigant support
•  1 x Universal support
•  1 x Main cable
•  5 x Disposable irrigation tubings
•  1 x Electric motor compatible with NSK connection with a 1.8 meter long cable
•  1 x Cable foot control
•  1 x 20:1 Surgical contra-angle handpiece
